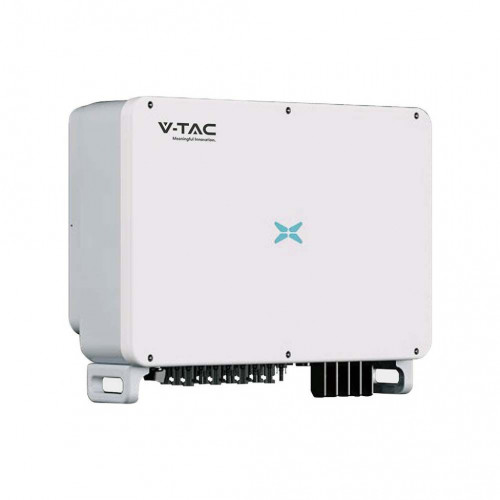

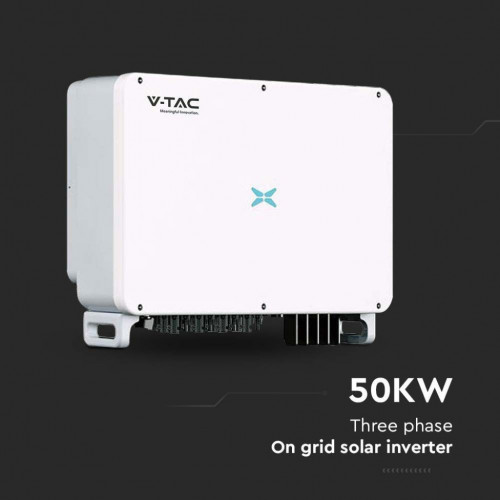

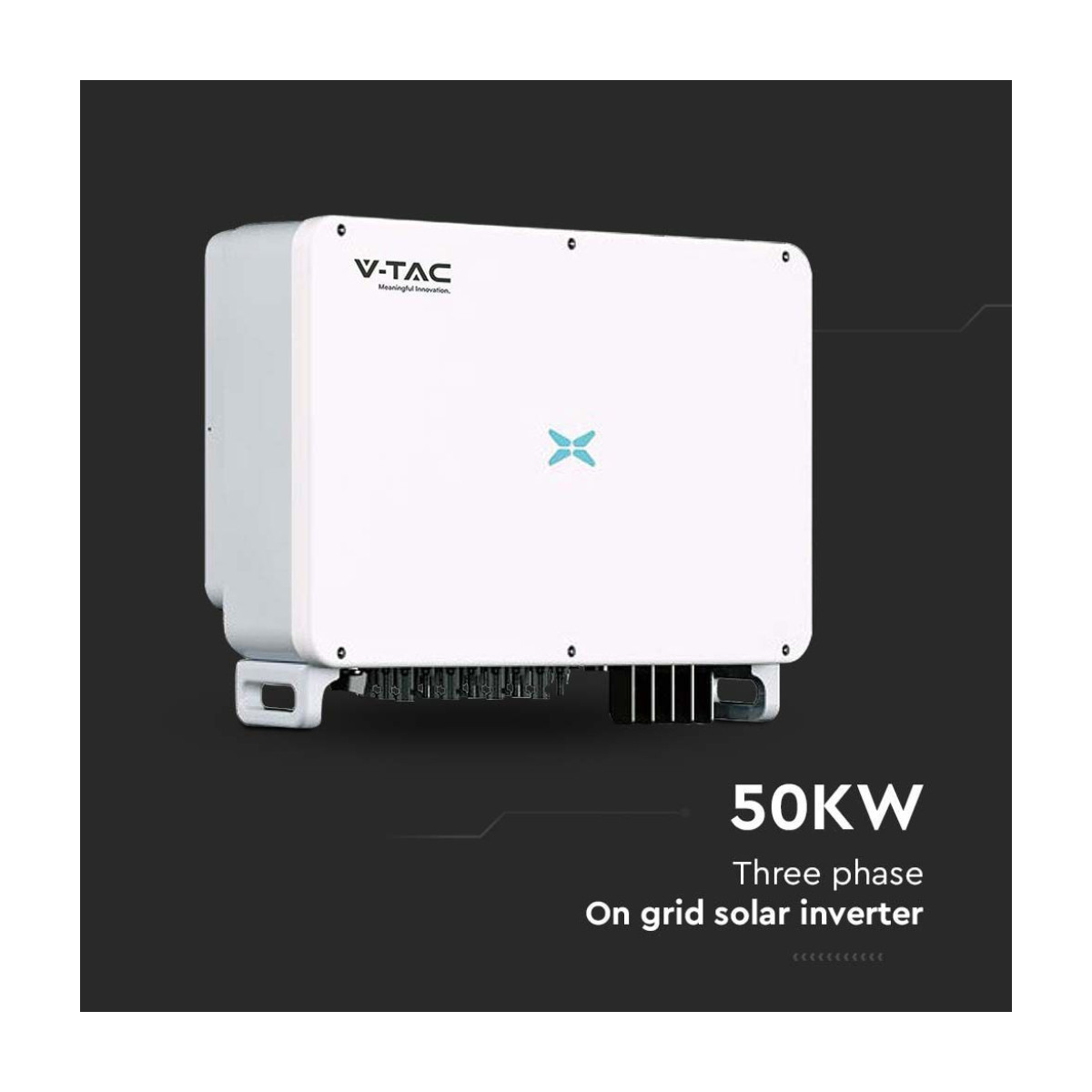

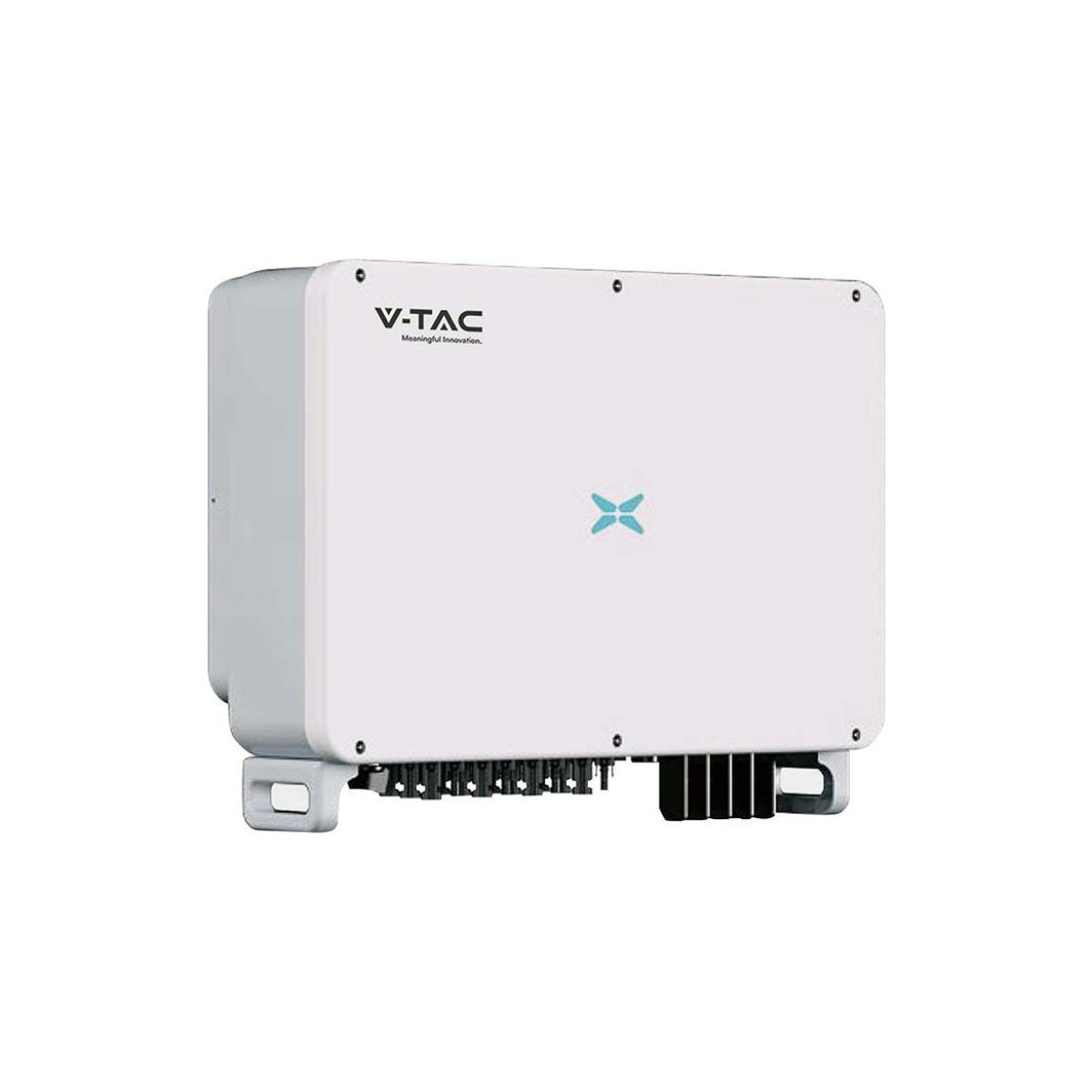

V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66

V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 50KW (500000W) Garanzia 10 Anni IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
808475
Codice prodotto
808475
Codice produttore
Marchio
V-Tac
DISPONIBILITÀ
4 - 7 giorni

50KW On Grid Solar Inverter Three Phase With 10YRS Warranty IP66

Input (DC)
Max. Input Power80kW
Max. Input Voltage 1100V
Start Voltage250V
Rated Input Voltage600V
Full-load MPP Voltage Range520V ~ 850V
MPPT Voltage Range200V ~ 1000V
Number of MPP Trackers4
Number of string per MPPT3 / 2 / 3 / 2
Max. Current per MPPT39A / 26A / 39A / 26A
Max. Short Circuit Current per MPPT48A / 32A / 48A / 32A
Output (AC)
Max. Output Current79.7A
Rated Output Power50kW
Max. Output Power 55kVA
Rated Grid Frequency50Hz / 60Hz
Rated Grid Voltage230Vac / 400Vac
Power Factor>0.99 (0.8 leading~0.8 lagging)
THDi
Protection
DC reverse polarity protectionYes
Anti-islanding protectionYes
AC short circuit protectionYes
Residual current monitoring unitYes
Insulation resistance monitoringYes
Ground fault monitoringYes
Grid monitoringYes
PV string monitoringYes
Surge protectionType II
AFCI protectionOptional
Communication
DisplayLED / LCD / WiFi+App
CommunicationStandard：RS485/ USB Optional：WiFi / GPRS / Ethernet
General Data
Dimensions (W x H x D)650 x 450 x 260 mm
Weight50kg
Operating Temperature Range -30° C ~ +60° C
Cooling MethodSmart Cooling

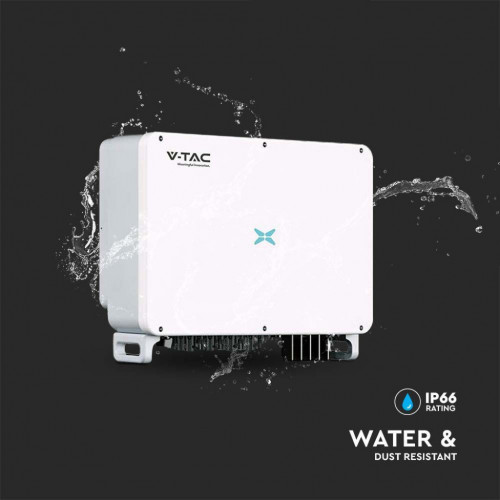

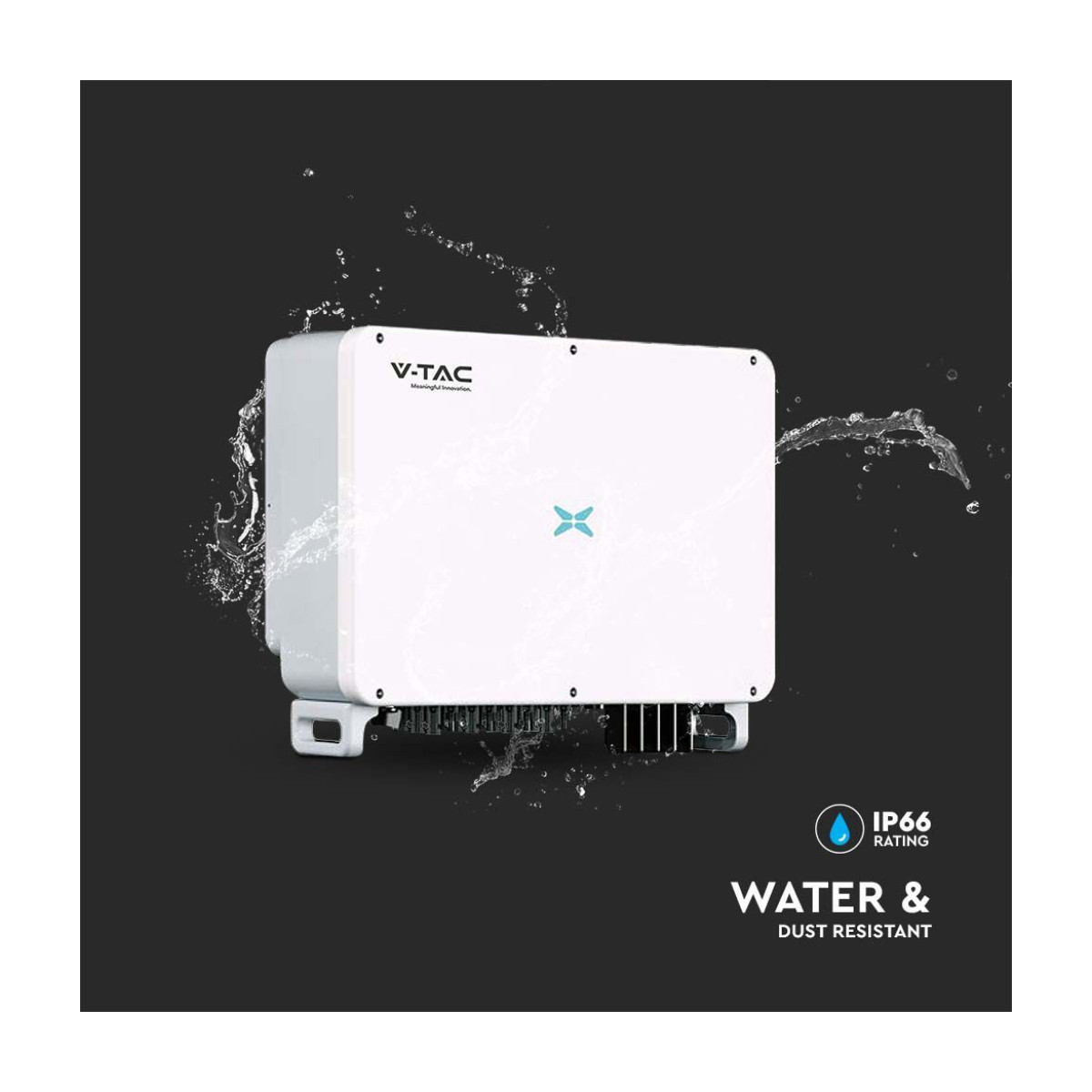

Protection DegreeIP66
Max. Operating Altitude4000m
Relative Humidity0 ~ 100%
TopologyTransformerless
Night Power Consumption
