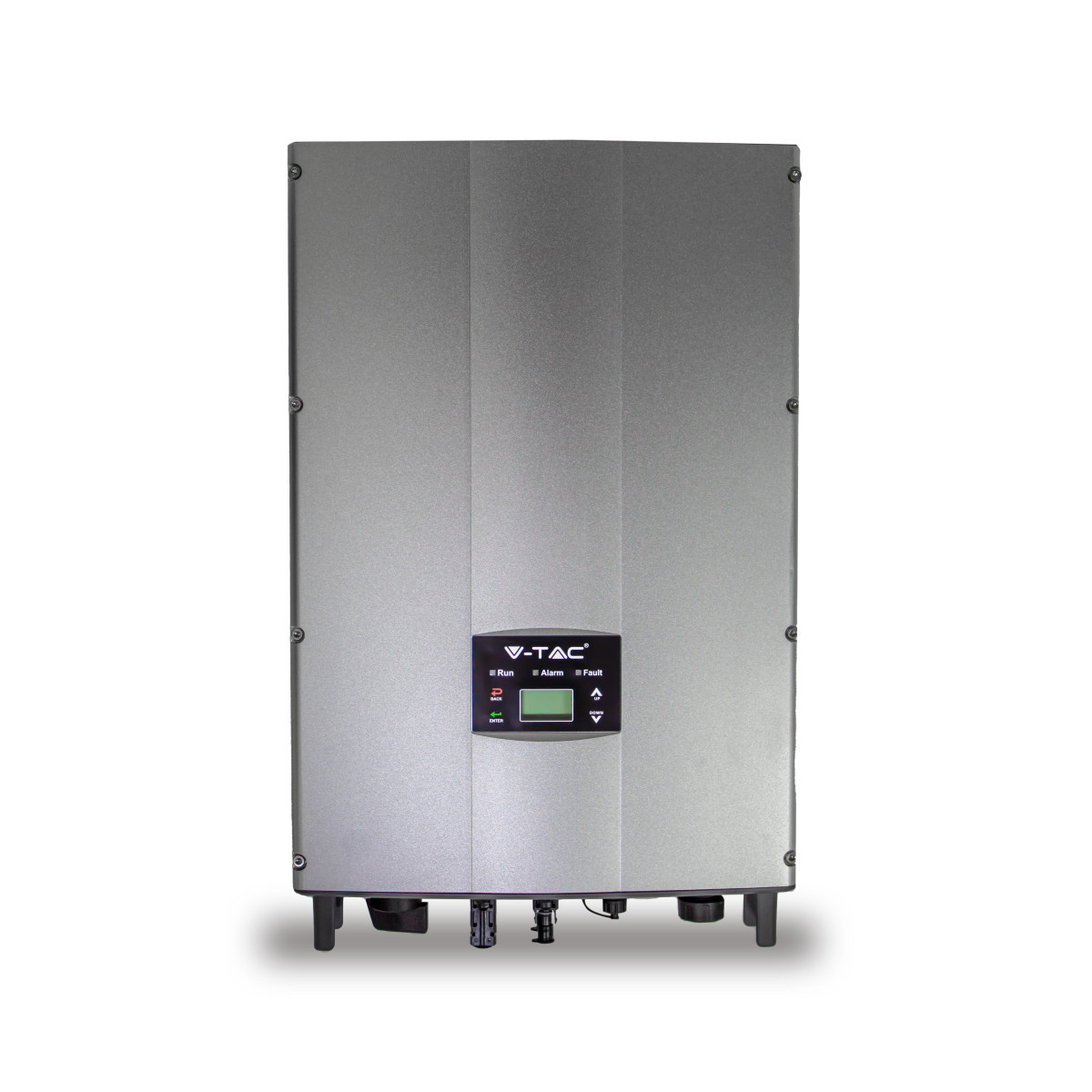

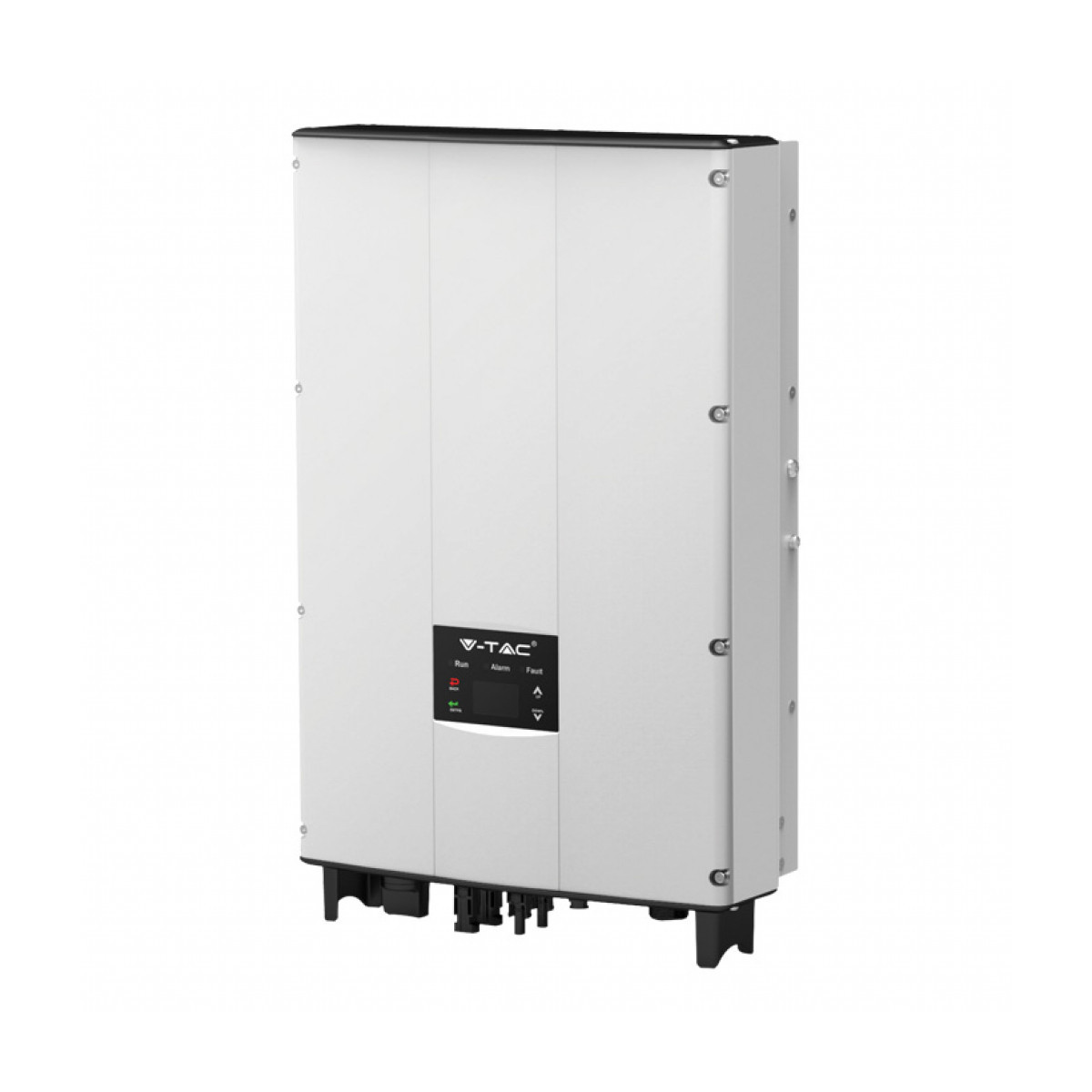

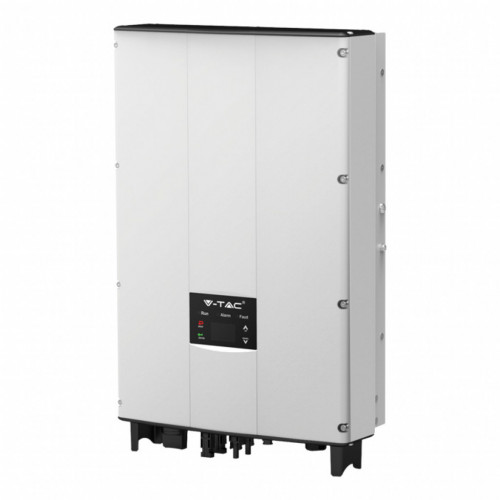

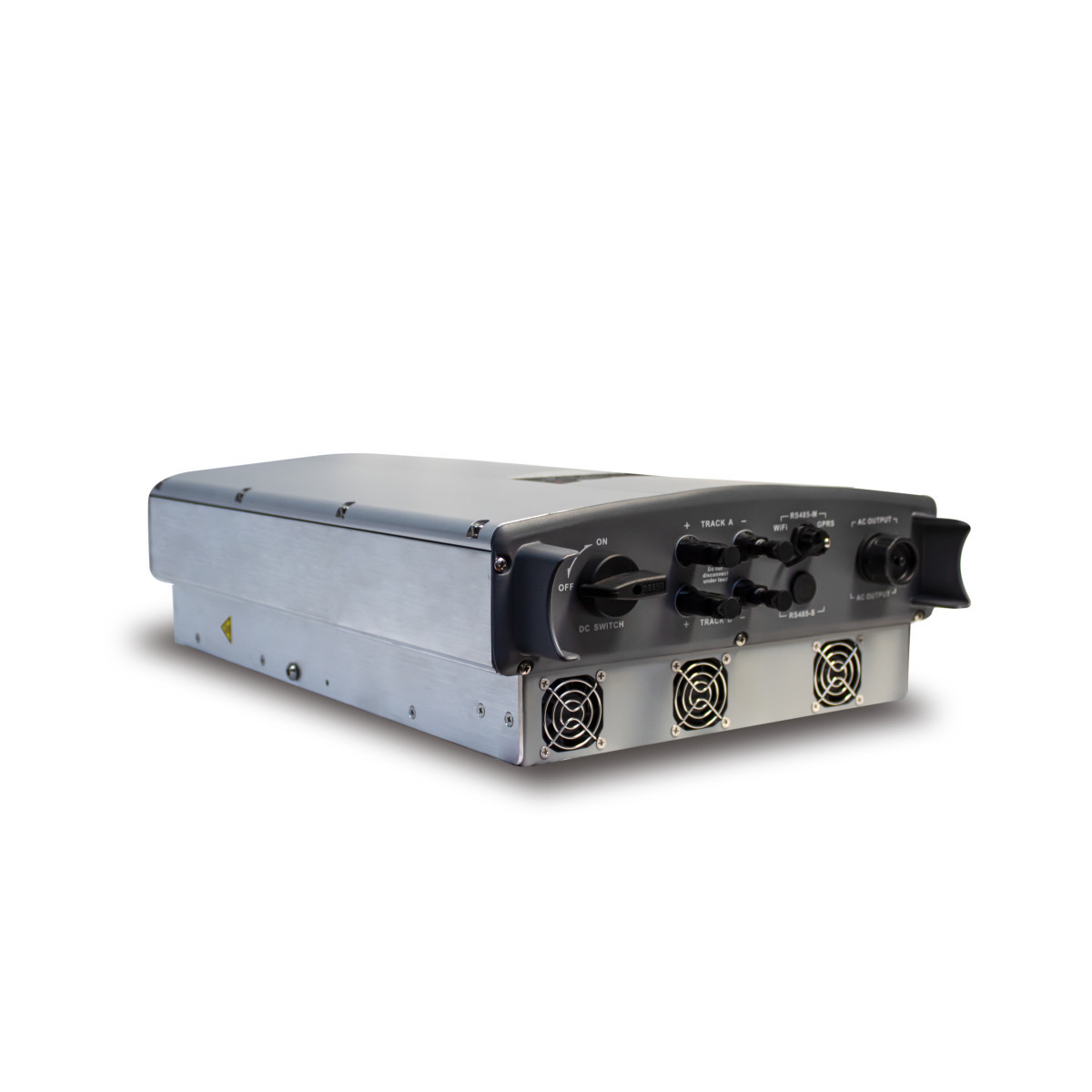

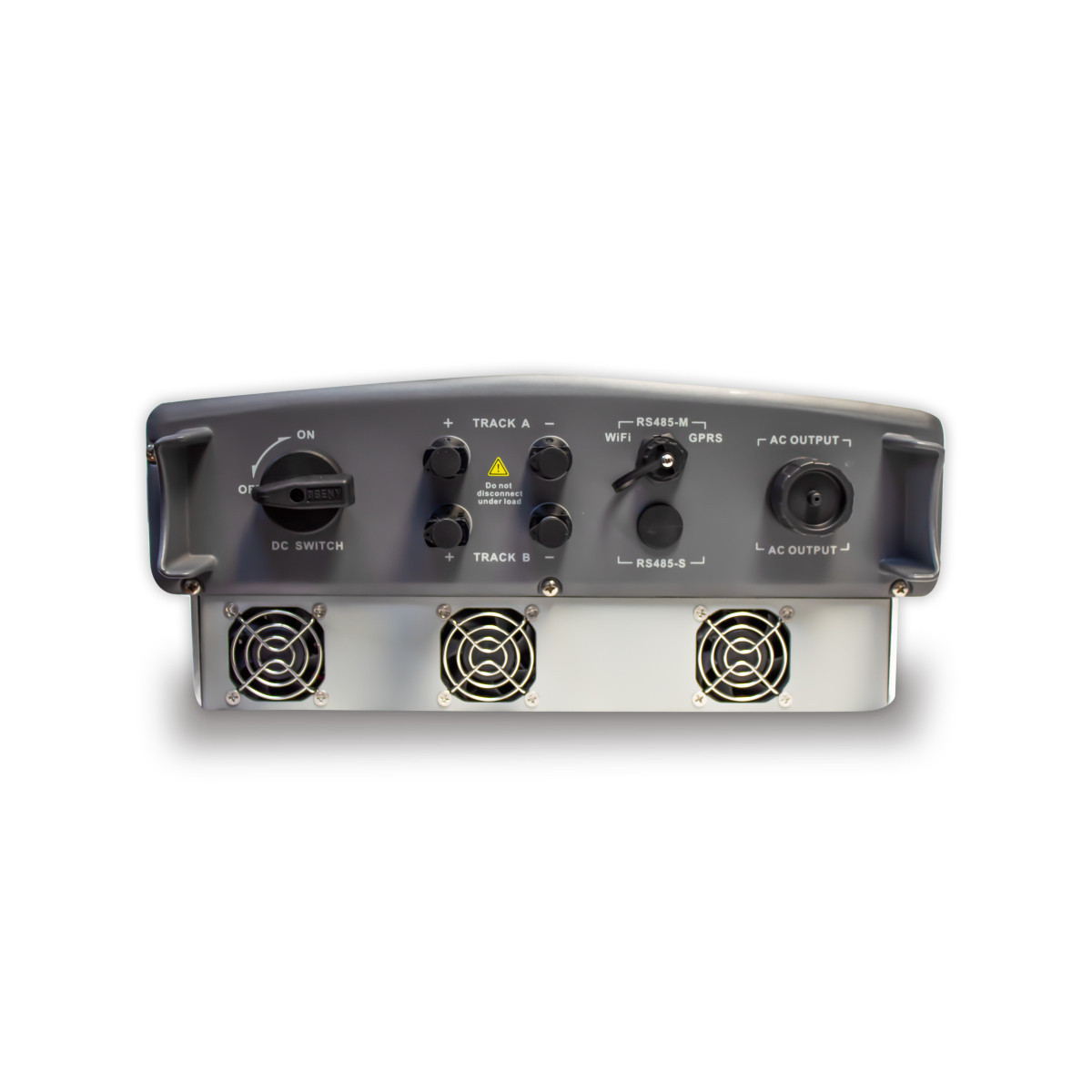

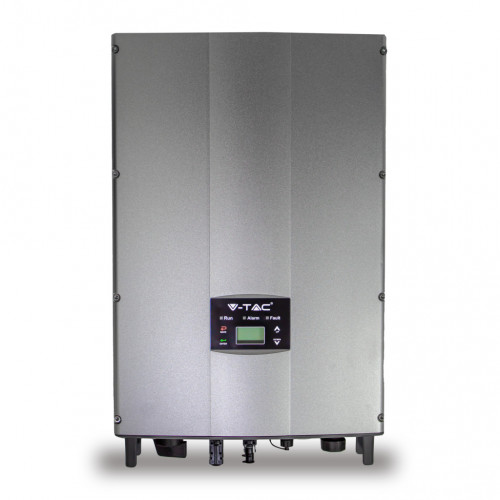

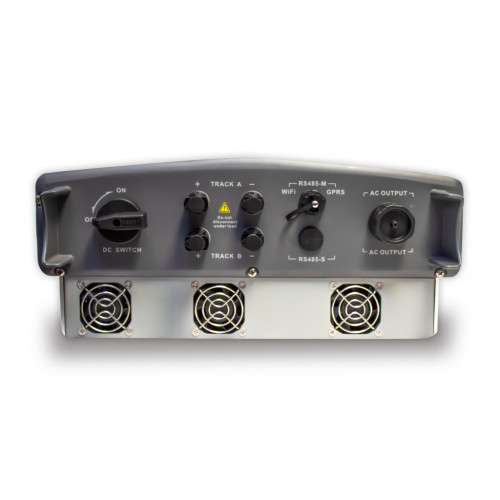

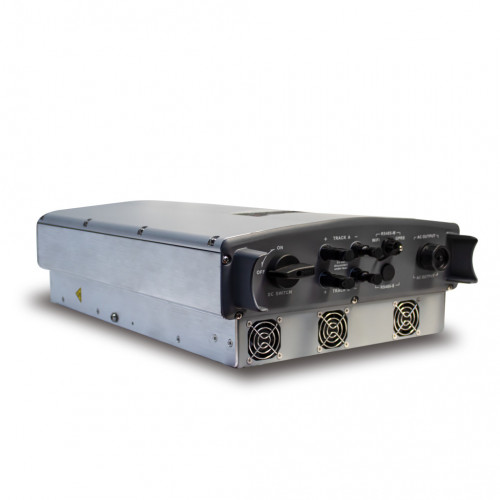

V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66

V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 10KW (10000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
V-TAC Inverter Fotovoltaico Trifase On-Grid...
789651
Codice prodotto
789651
Codice produttore
VT-6610305
Marchio
V-Tac
DISPONIBILITÀ
4 - 7 giorni
Garanzia5 anni
Potenza10000W
Output inverterTrifase
Max. DC input power (W)11000
Max. DC input voltage (V)1000
220/150
MPPT range (V)200-800/610
2/1
Max. DC current (A) per MPPT x Quantity of MPPT12.5x2
Rated output power (W)10000
Max. AC output current (A)14
Max. output power (W) (PF=1)10000
Max. apparent power（VA）10000
Power factor≥0.99 (at rated power)
THDi
Nominal output voltage (V) / frequency (Hz)230/400V;220/380V, 3L+N+PE/3L+PE, 50/60
Max. efficiency98.3%
Euro-efficiency97.8%
MPPT efficiency99.9%
ProtectionDC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
Display2.0 inches LCD display, support backlit display
Communication interfaceRS485(standard); WiFi、Ethernet（optional）
Cooling methodSmart cooling
Protection degreeIP65
Night self consumption (W)
Operating temperature range-25º~+60º(derate after 45º)
Relative humidity4~100%, condensation
Dimension (H x W x D mm)575x360x150
Weight (kg)23
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011
