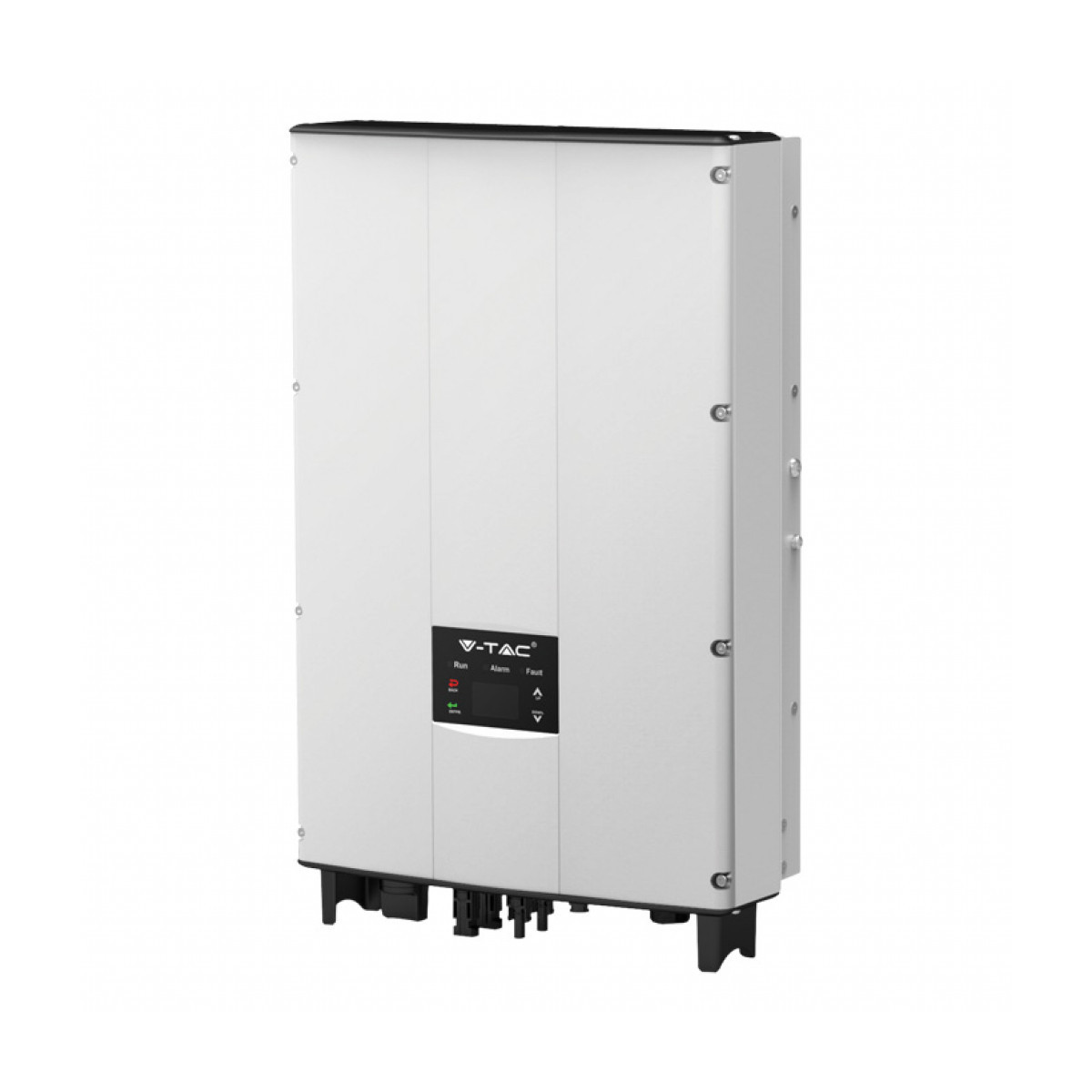

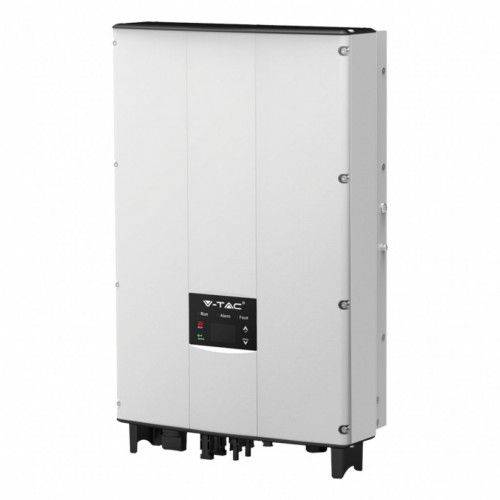

V-TAC Inverter Fotovoltaico Trifase On-Grid 5KW (5000W) IP66

V-TAC Inverter Fotovoltaico Trifase On-Grid 5KW (5000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 5KW (5000W) IP66
V-TAC Inverter Fotovoltaico Trifase On-Grid 5KW...
V-TAC Inverter Fotovoltaico Trifase On-Grid 5KW...
790589
Codice prodotto
790589
Codice produttore
VT-6605305
Marchio
V-Tac
DISPONIBILITÀ
4 - 7 giorni
Max. DC input power (W)5700
Max. DC input voltage (V)900
220/180
MPPT range (V)200-800/580
2/1
Max. DC current (A) per MPPT x Quantity of MPPT10x2
Rated output power (W)5000
Max. AC output current (A)8
Max. output power (W) (PF=1)5000
Max. apparent power（VA）5000
Power factor≥0.99 (at rated power)
THDi
Nominal output voltage (V) / frequency (Hz)230/400V;220/380V, 3L+N+PE/3L+PE, 50/60
Max. efficiency98.1%
Euro-efficiency97.6%
MPPT efficiency99.9%
ProtectionDC breaker, AC short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc.
Display2.0 inches LCD display, support backlit display
Cooling methodNatural cooling
Protection degreeIP65
Operating temperature range-25º~+60º(derate after 45º)
Relative humidity4~100%, condensation
Dimension (H x W x D mm)530x360x150
CONSEGNA
Metodo di spedizione:
16,39 €

CAMBIA MODALITÀ DI SPEDIZIONE E SCOPRI TUTTI I DETTAGLI IN FASE DI CHECKOUT
I COSTI DEL TRASPORTO POSSONO VARIARE IN BASE ALLE AREE GEOGRAFICHE
